Black Plastic Testing Equipment Carbon Dispersion Tester With Image Analysis

Black Plastic Testing Equipment Carbon Dispersion Tester With Image Analysis

Product instruction:

Carbon black dispersion tester for detection of polyolefin pipes, pipe fittings and mix ingredients in color and carbon black dispersion; By carbon black particles on the scale of the situation, shape, and distributed

measurement, can build these parameters and mechanical properties, antistatic property, hygroscopicity

of macro performance indexes such as inner link, this will be the quality of plastic material, production

technology, new product research and development have a positive impact, promote enterprise and

industry technical level to promote quickly at the same time.The instrument in accordance with international

standards of GB/T 18251-2000, the key parts adopt imported push around CX22 binocular microscope,

high resolution, high resolution CCD camera, with powerful software support, can fast and accurately

measure the size of the particles or particle group and its dispersion, all process automation, users only

need to implement to add sample, software to realize the collection of particles images automatically,

automatic save, automatic calculation of parameters.

Specification:

1) Measuring principle: image analysis

2) Measuring range: 0.5 microns to 10000 microns

3) Measurement analysis time: less than 3 minutes under normal conditions (measured from the beginning to

show the results of the analysis).

4) Repeatability: 3% (volume average diameter)

5) Particle size of the equivalence principle: such as area of short diameter and equivalent diameter

6) Granularity statistical parameters: volume (weight) and the number of particles

7) Imaging resolution: 2048 * 1024 (3 million pixel digital camera)

8) Image size: 1280 x 1024 pixels

9) Optical magnification: 100 times

10) Communication interface, USB interface

11) Sample machine: 10 mm * 3 mm

12) Power supply: 110 120/220-120/220-240 - v A 50/60 hz (microscope)

material testing equipment

material testing machine

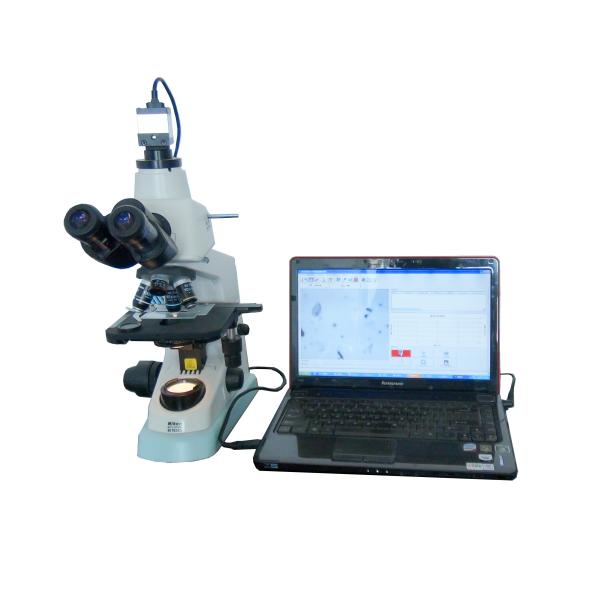

Black Plastic Testing Equipment Carbon Dispersion Tester With Image Analysis Images
