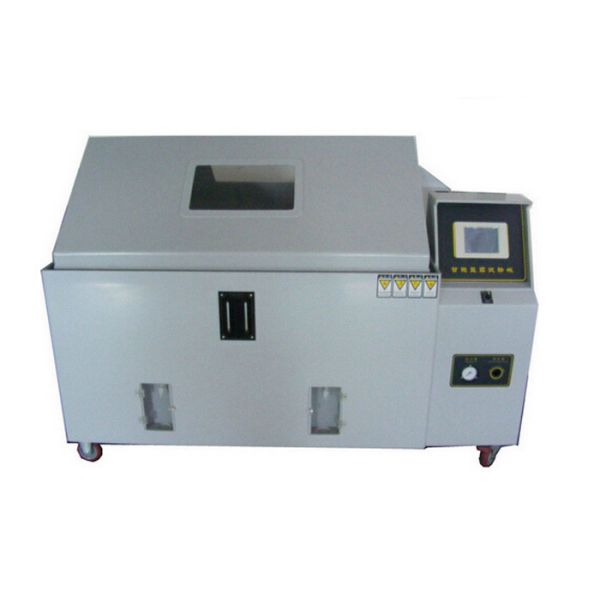

Touch Screen Automatic Salt Spray Test Chamber For Electroplating Crossion Test
Design standards:
ISO9227,CNS3627,3885,4159,7669,8886,JIS D-0201,H-8502,H-8610,K-5400,Z-2371,ISO 3768,3769,3770,ASTM B-117,B-268,GB-T2423,GJB 150.
Introduction:
Salt spray test machine can determine the corrosion resistance of iron metal or the iron metal inorganic film or organic film test, such as: electroplating, anode processing, conversion coating, painting, ect.
Characteristics:
- LCD display and touch screen programmable controller.
- Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
- Controller are in the same panel, the operation simple and clear.
- Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test laboratory
- The cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
- A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow.
- Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement.
The Main Technical Parameter:
| Model: | LY-609-200 |
| Inner Box Size (L×W×H) | 200×120×60 cm |
| Outside Box Size(L×W×H) : | 270×150×150 cm |
| Temperature Range : | 35°C~55 °C |
| Temperature Fluctuations : | ≤±0.5°C |
| Temperature Uniformity : | ±1°C |
| Brine Temperature : | 35°C±1°C |
| Spray Quantity : | 1.0~2.0 ml / 80cm2 / hr |
| Lab Volume : | 1440L |
| Brine Tank Capacity : | 40L |
| Power : | AC220V,10A |
| Accessories : | Testing Salt/ Measuring tank/ Equipment each 1 set |
| Equipment Material | Both inside & outside shell adopt imported P.V.C rigid plastic board, and tank cover uses imported transparent P.V.C. rigid plastic board |
| Test Chamber Temperature | Salt Spray Method (NSS ACSS)35±1°C
Corrosion-resistant Testing Method(CASS)50±1°C |
| Saturated air Barrel Temperature | Salt Spray Method (NSS ACSS)47±1°C
Corrosion-resistant Testing Method(CASS)63±1°C |
| PH | Salt Spray Method (NSS ACSS6.5~7.2)Corrosion-resistant Testing Method(CASS)3.0~3.2 |
| Multiple Safety Protection Devices : | Current discharge protection, over pressure protection,over temperature protection, over load fuse protection |
